The repository can be used to install the services and all the development environment for the Avenirs-ESR's ePortfolio.
It is based on bash scripts for bootstraping and cleaning and a main docker compose file that includes a docker compose file for each service to deploy. The main bootstrap script will invoque the bootstrap script for each service. A service bootstrap script may create the docker volumes on file system, check the branch (if a git submodule), and create a .env file to propagate the settings.
- Git,
- Docker (tested with 24.0.6)
- Docker-compose >=2.2.0 for the support of "include".
- JASYPT_ENCRYPTOR_PASSWORD environment variable must be set (jasypt is used for the bootstrapping stage).
.
├── docker-compose.yml Main docker compose file
├── scripts Main Scripts directory
│ ├── srv-dev-bootstrap.sh Main bootstrapping script
│ ├── srv-dev-clean.sh Removes all the bootstrap modifications
│ ├── srv-dev-commons.sh Helpers and constants for the bash scripts
│ └── srv-dev-env.sh Main environment file : can override the services environment files.
└── services
├── apisix
│ ├── apisix-dashboard git submodule https://github.com/apache/apisix-dashboard.git
│ ├── apisix-docker git submodule: https://github.com/apache/apisix-docker.git
│ ├── avenirs-apisix-overlay
│ │ ├── apisix-dashboard
│ │ │ ├── web
│ │ │ │ └── config
│ │ │ │ └── config.ts
│ │ │ └── Dockerfile
│ │ └── apisix-docker
│ │ ├── grafanapx_conf
│ │ │ └── grafana.ini
│ │ └── example
│ │ └── docker-compose.yml
│ │
│ │
│ └── scripts
│ ├── apisix-bootstrap.sh Apisix bootsrapping script
│ ├── apisix-clean.sh Reverts Apisix bootstrapping
│ └── apisix-env.sh Apisix environment file
│
├── apache Proxy for the docker containers
│ ├── avenir-apache-overlay
│ │ ├── conf
│ │ │ ├── extra
│ │ │ │ ├── avenirs.conf Proxy rules
│ │ │ │ └── httpd-ssl.conf
│ │ │ └── httpd.conf
│ │ └── htdocs
│ └── scripts
│
├── cas
│ ├── avenirs-cas-overlay git submodule: https://github.com/apereo/cas-overlay-template.git
│ │ ├── build.gradle
│ │ ├── docker-compose.yml
│ │ ├── Dockerfile
│ │ ├── entrypoint.sh
│ │ └── etc
│ │ └── cas
│ │ ├── config
│ │ │ ├── cas.properties
│ │ │ └── log4j2.xml
│ │ ├── services
│ │ │ ├── all-1649925263.json
│ │ │ └── apim-4000.json
│ │ └── thekeystore
│ ├── cas-overlay-template
│ └── scripts
├── kafka
│ └── (...)
└── openldap custom container based on osixia's images
├── doc
├── fixtures
└── scripts
└── openldap
The scripts are located in the folders "scripts"; in the root for the main ones, and in each service directory for specific ones. The services' scripts can be executed via the main ones: srv-dev-bootstrap or srv-dev-clean.sh or individually directly.
git clone [email protected]:avenirs-esr/srv-dev.git --recurse cd srv-dev/ npm i npm run deploy
This instructions will :
- Download the project and all its submodules (--recurse option).
- Run the bootstratp scripts (the main one and the ones associated to each service).
- Download / generate the docker images.
- Run the containers associated to each service (via docker-compose).
On Windows, .sh files are CRLF by default, so you need to switch them to LF for scripts to work.
To do this, a .ps1 script has been created. To run it, open a powershell and place yourself in the srv-dev folder you've just cloned. Then run the following command:
.\convert-sh-to-lf.ps1
Available npm scripts :
- npm run deploy: bootstrap each service and run the containers.
- npm run clean: stop the containers and reset all modifications made via the bootstrap scripts.
- npm run purge: idem as clean + docker system prune -a and docker volume prune
- npm run reset: resets all the services as if they were just installed
- npm run dev: idem as deploy without detaching the containers
- npm run sync-modules: synchronize the submodules and set the head to the master or main branch (handles detached head)
- npm run sync: synchronizes everythind (without detached head)
curl "http://localhost/apim" --head | grep Server
% Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed
0 0 0 0 0 0 0 0 --:--:-- --:--:-- --:--:-- 0
Server: APISIX/3.6.0
http://<server>/apisix-api/http://<server>/apim/http://<server>/apisix-ui/http://<server>/apisix-prometheus/http://<server>/apisix-grafana/http://<server>/ldapadmin/http://<server>/cas-> e.g.:http://<server\>/cas/loginhttp://<server>/kafka-ui/
The sql initialization scripts can be placed in the folder: services/postgresql/avenirs-postgresql-overlay/init/
The script must be decrypted, for instance using the jasypt tool.
the "generated tag" in the file name is used to disable the versioning, e.g.: 11_avenirs-security_init-db.generated.sql.
An example can be found in services/avenirs-portfolio/scripts/avenirs-portfolio-bootstrap.sh
N.B.: Theses scripts are executed when the container is started for the first time.
Note: The file for Apisix api keys: services/apisix/secret_env must be downloaded from vaultwarden.
The APISIX initialization scripts can be placed in the folder: services/apisix/scripts/initialization.
Theses scripts are executed by a specific initialization container and the entry point is
init-routes.sh.
N.B: the extension curl.sh is used to filter the scripts, e.g.: 01-set-auth-mock-test-route.curl.sh.

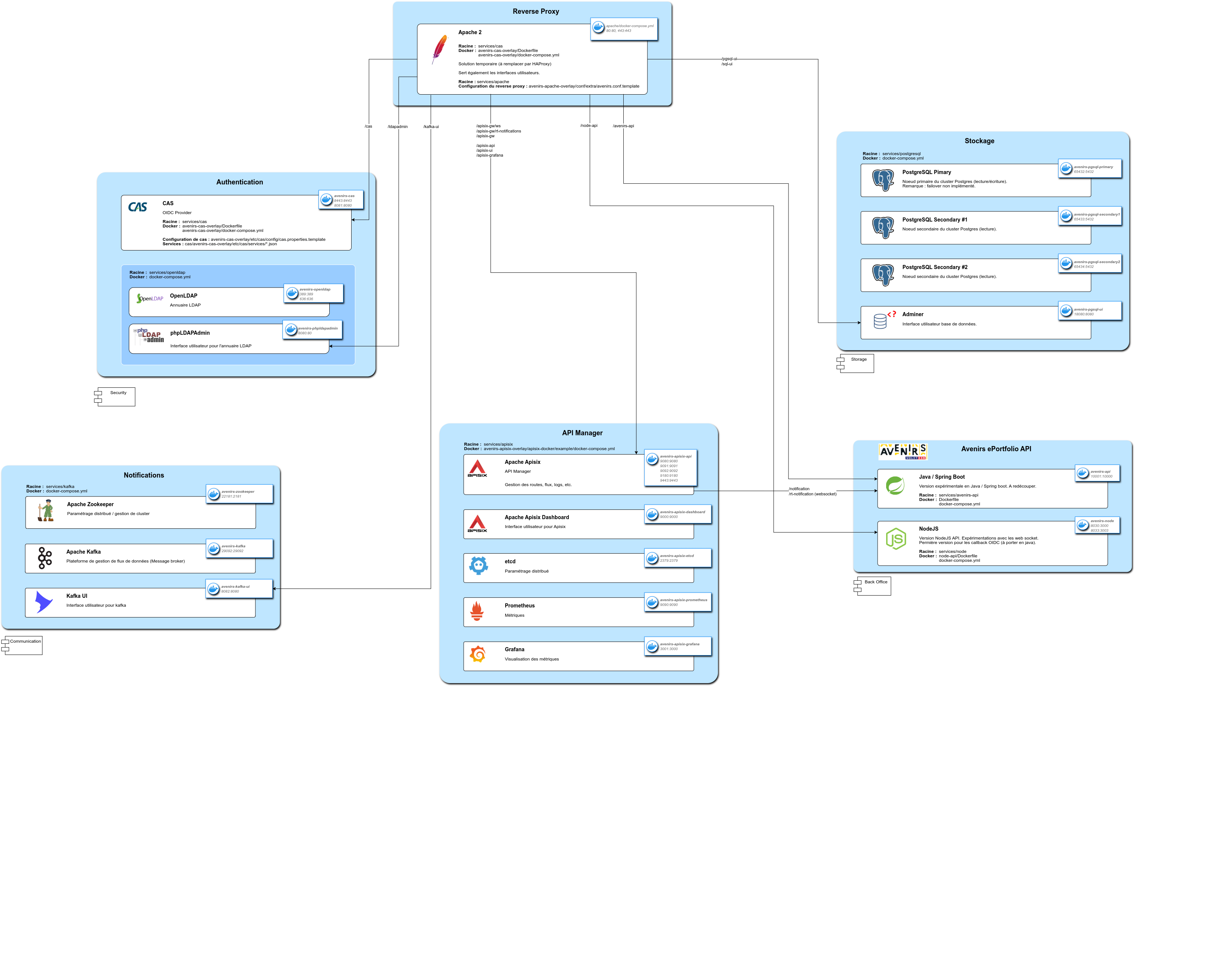

Several containers should be deployed and running. The list of containers may vary, but this is the list at the time this document was written:
CONTAINER ID NAMES STATUS PORTS
2e09fa47d0f5 avenirs-apache Up 17 hours 0.0.0.0:80->80/tcp, [::]:80->80/tcp, 0.0.0.0:443->443/tcp, [::]:443->443/tcp
ad8e57a13587 avenirs-kafka-ui Up 18 hours 0.0.0.0:8082->8080/tcp, [::]:8082->8080/tcp
b6ca8c2e7e8f avenirs-kafka Up 18 hours 9092/tcp, 0.0.0.0:29092->29092/tcp, [::]:29092->29092/tcp
a300df2b68b0 avenirs-portfolio-security Up 18 hours 0.0.0.0:10003->12000/tcp, [::]:10003->12000/tcp
2c37d79679a5 avenirs-pgsql-secondary2 Up 18 hours 0.0.0.0:65434->5432/tcp, [::]:65434->5432/tcp
692effb34ac0 avenirs-pgsql-secondary1 Up 18 hours 0.0.0.0:65433->5432/tcp, [::]:65433->5432/tcp
c8775b53c419 avenirs-cas Up 18 hours 0.0.0.0:8443->8443/tcp, [::]:8443->8443/tcp, 0.0.0.0:8081->8080/tcp, [::]:8081->8080/tcp
79592ffdda03 avenirs-apisix-api Up 18 hours 0.0.0.0:9080->9080/tcp, [::]:9080->9080/tcp, 0.0.0.0:9091-9092->9091-9092/tcp, [::]:9091-9092->9091-9092/tcp, 0.0.0.0:9180->9180/tcp, [::]:9180->9180/tcp, 0.0.0.0:9443->9443/tcp, [::]:9443->9443/tcp
ce1286c8278d avenirs-phpldapadmin Up 18 hours 443/tcp, 0.0.0.0:8080->80/tcp, [::]:8080->80/tcp
cfcbe134ab3a avenirs-node Up 18 hours 0.0.0.0:8030->3000/tcp, [::]:8030->3000/tcp, 0.0.0.0:8033->3003/tcp, [::]:8033->3003/tcp
7e950e57121b avenirs-openldap Up 18 hours 0.0.0.0:389->389/tcp, [::]:389->389/tcp, 0.0.0.0:636->636/tcp, [::]:636->636/tcp
b8a6e79234b6 avenirs-zookeeper Up 18 hours 2888/tcp, 3888/tcp, 0.0.0.0:22181->2181/tcp, [::]:22181->2181/tcp
55e1b5d1787e avenirs-pgsql-ui Up 18 hours 0.0.0.0:18080->8080/tcp, [::]:18080->8080/tcp
8db72e197ee3 avenirs-pgsql-primary Up 18 hours 0.0.0.0:65432->5432/tcp, [::]:65432->5432/tcp
27f5be7db3e4 avenirs-apisix-etcd Up 18 hours 0.0.0.0:2379->2379/tcp, [::]:2379->2379/tcp, 2380/tcp
0950e3f9681f avenirs-apisix-prometheus Up 18 hours 0.0.0.0:9090->9090/tcp, [::]:9090->9090/tcp
d04ea50f22bb avenirs-apisix-grafana Up 18 hours 0.0.0.0:3001->3000/tcp, [::]:3001->3000/tcp
059251304e11 avenirs-apisix-dashboard Up 18 hours 0.0.0.0:9000->9000/tcp, [::]:9000->9000/tcp
